VIP 130 hydraulically driven shredder

Description VIP 130 hydraulically driven shredder

The VIP 130 shredder is a professional rear-mounted unit for tractors with a power of 20 to 60 hp (14–43 kW), which is designed for the care of vineyards, orchards and row spacing. The machine provides effective shredding of grass and tree shoots with a diameter of up to 3 cm thanks to a helical (spiral) rotor equipped with 12 working elements and driven by the PTO at a speed of 540 rpm.

The working width of the shredder is 130 cm, while the inner rotor has an effective working area of ​​65 cm, and the material throughput width is from 33 to 97 cm, which ensures stable performance even in dense thickets. The rotor drive operates via three belts, which guarantees reliable power transmission and durability of the components.

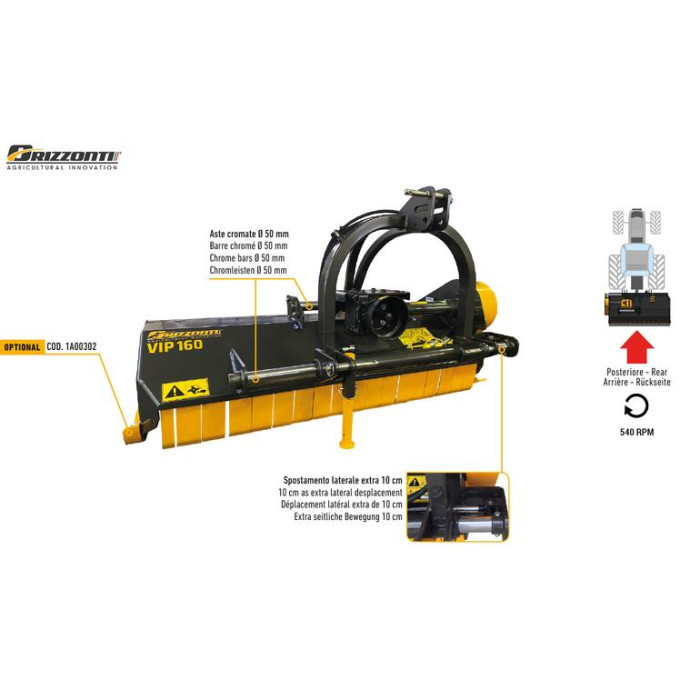

For row spacing, the model is equipped with a 10 cm hydraulic lateral offset, which allows you to precisely adjust the position of the machine relative to the rows. The chopper body is made of double-reinforced metal, complemented by a wear-resistant Hardox® plate, and the rounded side wall prevents damage to plant stems during passage.

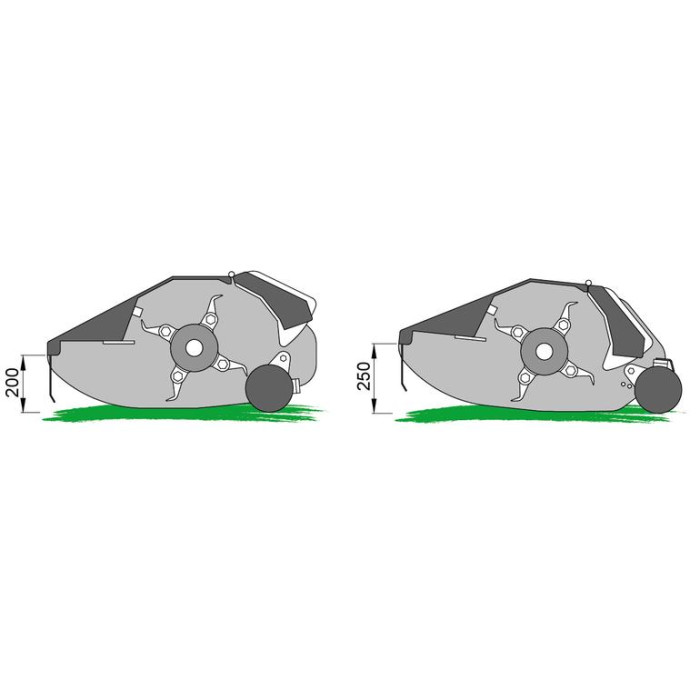

The working height is adjusted by the rear leveling roller, which is equipped with a cleaning scraper for stable work on wet or sticky soil. For quick maintenance, the rear hood can be opened without dismantling other elements.

The dimensions of the machine are 145 × 105 × 42 cm, and the weight is 335 kg, which makes it compact, but at the same time durable and productive.
